DX1006-T

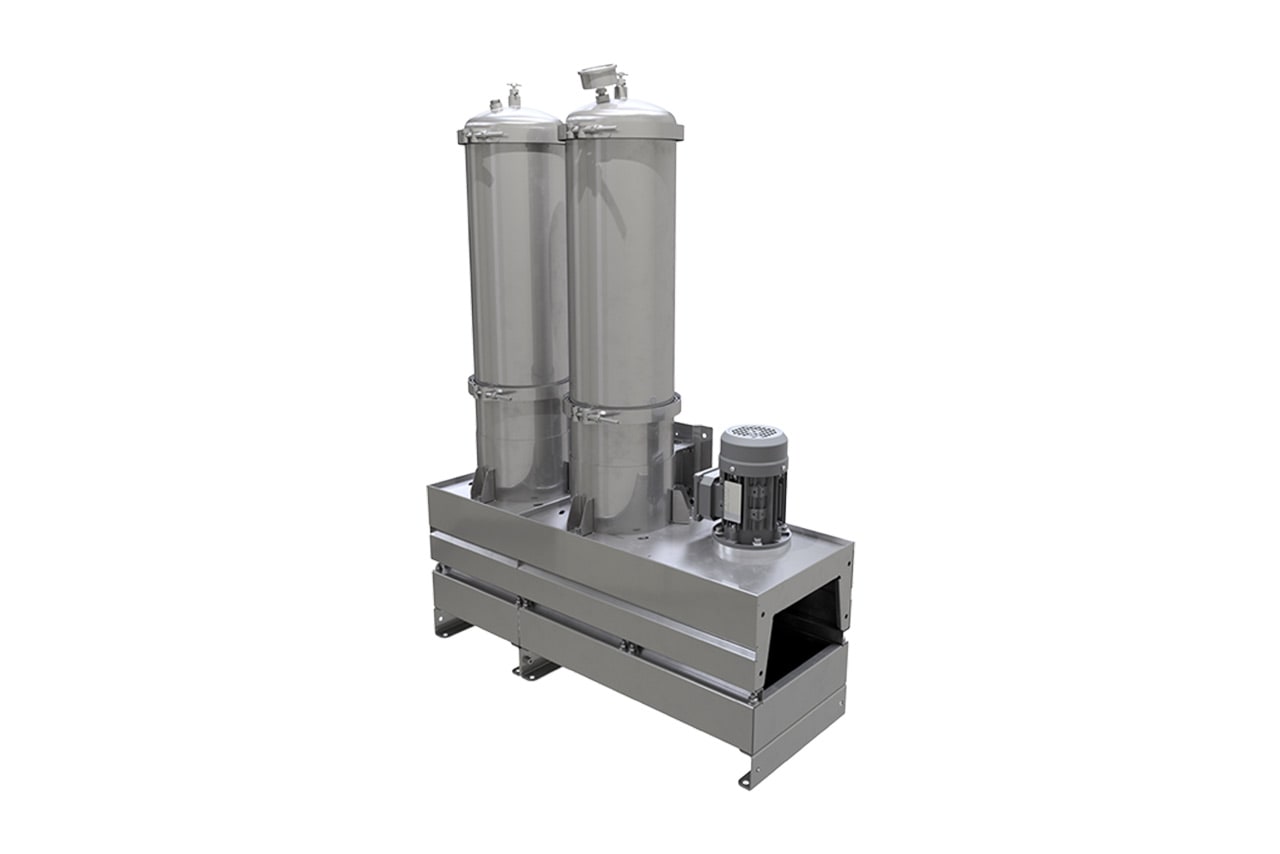

The DX modular housing arrangement offers a flexible and space conscious solution to integrating our innovative DXO Cartridge to both new and existing systems. We provide up to 12 cartridges as a single unit in a compact and easily maintainable layout.

The unit can be supplied with a number of standard options to provide an effective conditioning and monitoring package to suit the majority of systems. The flexibility of the unit allows tailoring to a customer’s specific requirements.

  • Drive InputElectric or Pneumatic
  • Connection Ports3/8”BSP In & Out
  • Flow IndicatorVisual
  • Suggested System VolumeUp to 27000ltrs @ 32cSt
  • Particulate RemovalFrom 0,1 μ
  • Weight55kg
  • DimensionsH 1158mm x D 300mm x L 825mm
  • MaterialSS316
  • DXO Cartridge QTY6
  • Flow Rate varies depending on viscosity, pressure and temperature
    Approx flow at 2.7bar 32 cSt 46 cSt 68 cSt 100 cSt 220 cSt 320 cSt 460 cSt
    6.25l/min 5.0l/min 4.0l/min 3.0l/min 2.0l/min 1.0l/min 0.6l/min
    Oil Volume 27000ltrs 21000ltrs 18000ltrs 14400ltrs 10800ltrs 4800ltrs 2400ltrs
