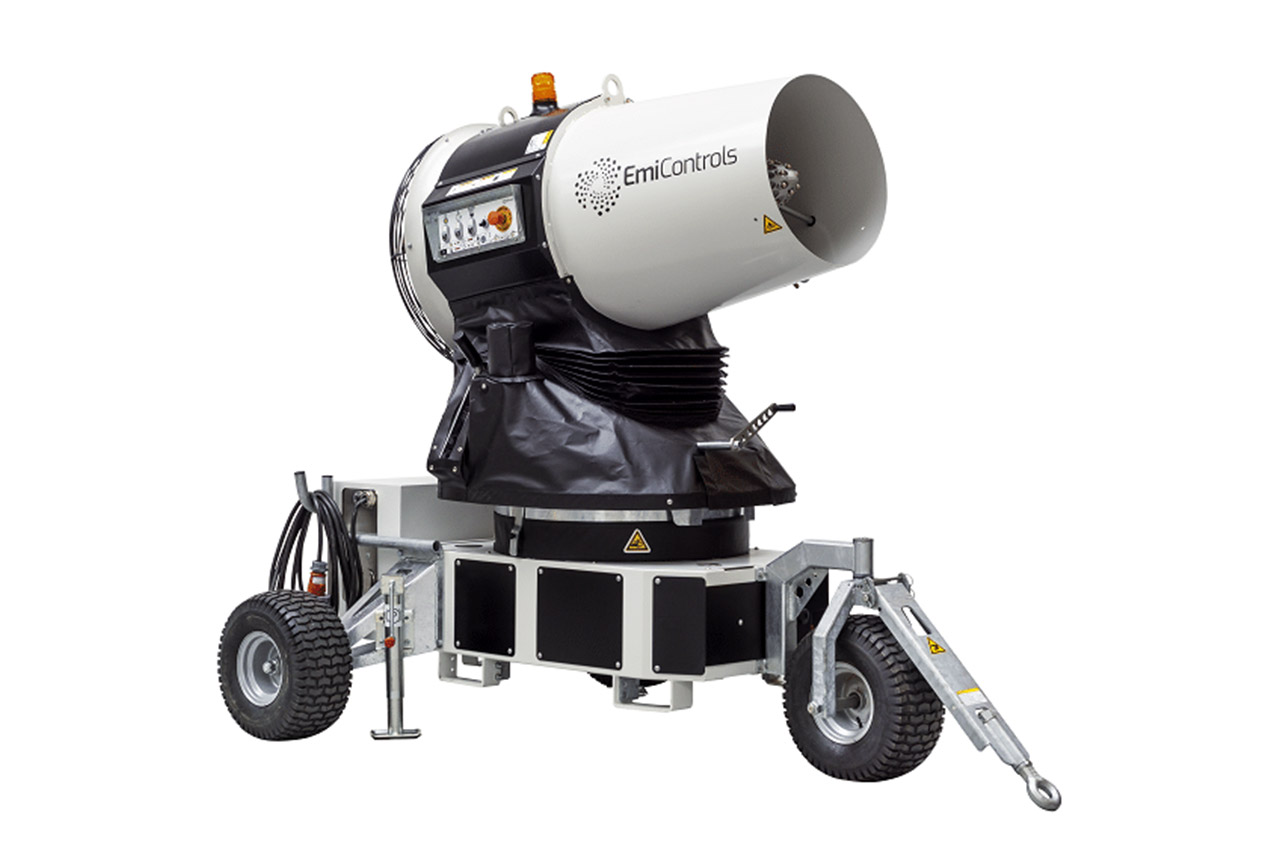

V12S Basic – Dust Controller

The Quietest Dust Controller in the World – Manual Version

V12s Manual Dust Controller

The V12s Basic is – like the V12s main model – a real all-rounder: thanks to its low noise emission, it can be used in city centres and inhabited areas without any problems. The turbine has two-speed levels, which makes it possible to spray the fine water mist at ranges of 25 to over 65 meters.

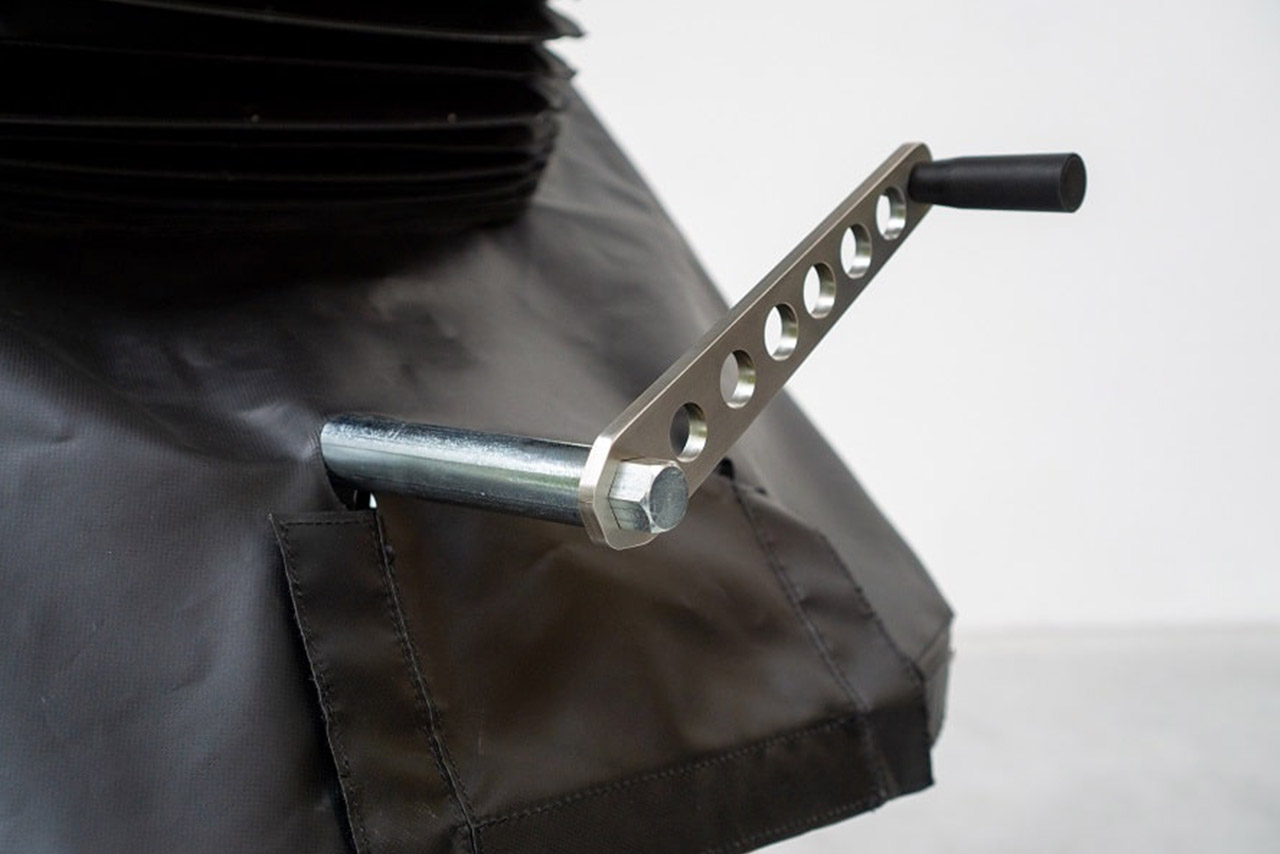

It is compact, easy to transport and extremely flexible in use, such as the main model of the V12s – only with manual swing and tilting adjustment.

What makes the V12s Basic unique:

  • The V12s Basic is very flexible and versatile in use, as it is low-noise and has different throwing distances.
  • The compact size of the turbine facilitates transport and repositioning.
  • With a noise emission of 60/63 db(A), the V12s Basic is the quietest dust controller in the world.
  • It is available both on an undercarriage and on a pallet.
  • It offers many other options for complete personalization of the machine (such as heating, submersible pump, electric swing, remote control, etc.).

Typical Applications

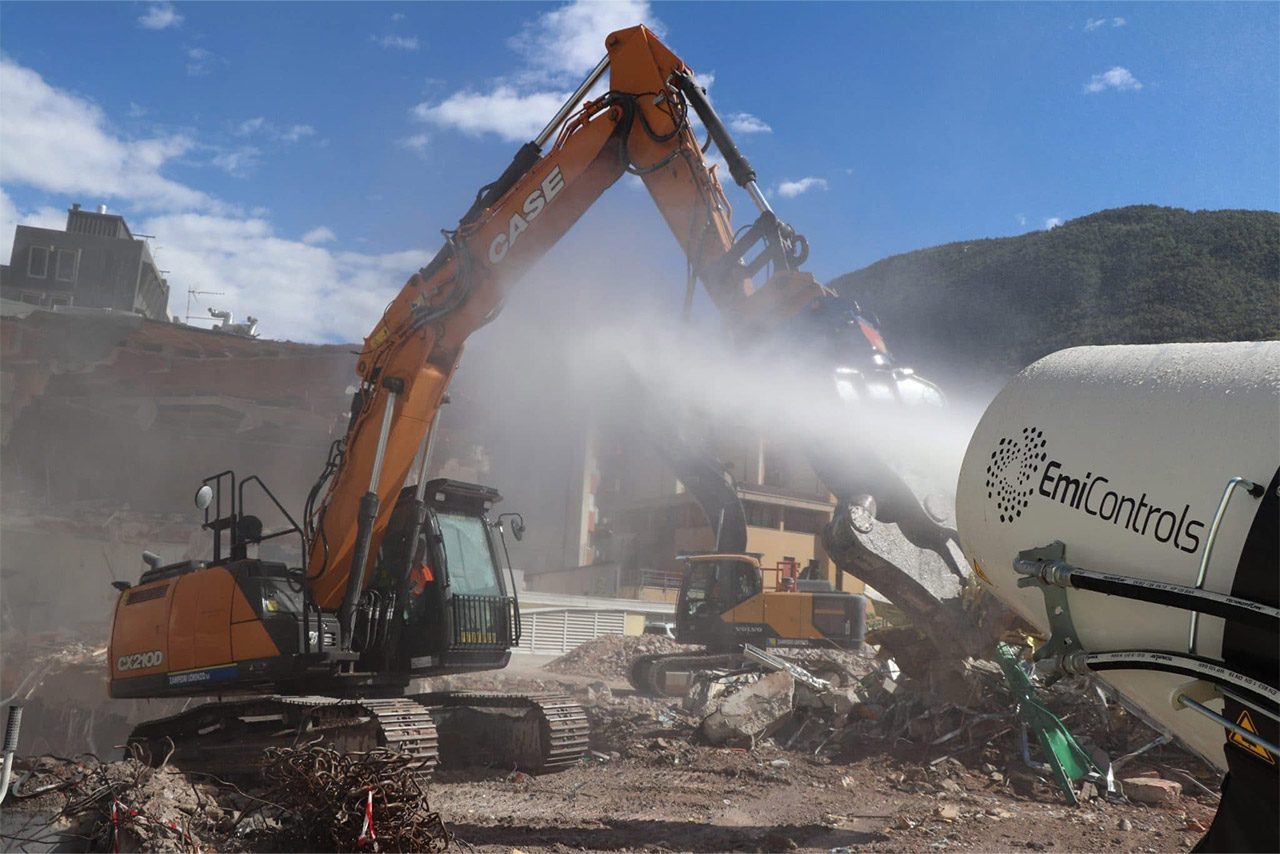

Ideal for city centres, the V12s Basic is designed for areas where the noise level needs to be kept low, industry, demolition, all types of opencast mining, recycling plants, material storage, loading facilities, landfills and wood processing.

Technical Specifications

Electrical Characteristics

  • Nominal voltage V400
  • Frequency Hz50
  • Nominal current A32
  • Power connection A5×32
  • Nominal power – turbine kW3* / 11
  • Nominal power – pump kW4

Size

  • Length (on machine carrier) mm1,700
  • Width (on machine carrier) mm/span>1,145
  • Height (on machine carrier) mm1,985
  • Length without steering (undercarriage) mm2,255
  • Length with steering (undercarriage) mm2,710
  • Width (on undercarriage) mm1,795
  • Height (on undercarriage) mm2,150

Weight

  • On machine carrier kg600
  • On undercarriage with front wheel kg660

Various

  • Operating temperature °C0° to +30°
  • with cooling and heating °C-10° to +40°
  • Turbine tilt °0° to +50°
  • Swing (manual) °360°
  • Throwing distance (up to) m25 – 35* / 50 – 65
  • Sound pressure level LA db(A)60* / 63 at 20 m

Water

  • Max flow l/min110
  • Supply pressure bar2 – 5
  • Filter49 μm / 100 mesh
  • Water connection2 inches Camlock
  • optional“C” Storz
  • optionalUNI 45

Arrangement of Nozzles

  • Nozzle head, external ring pcs.12
  • Nozzle head, internal ring pcs.18
