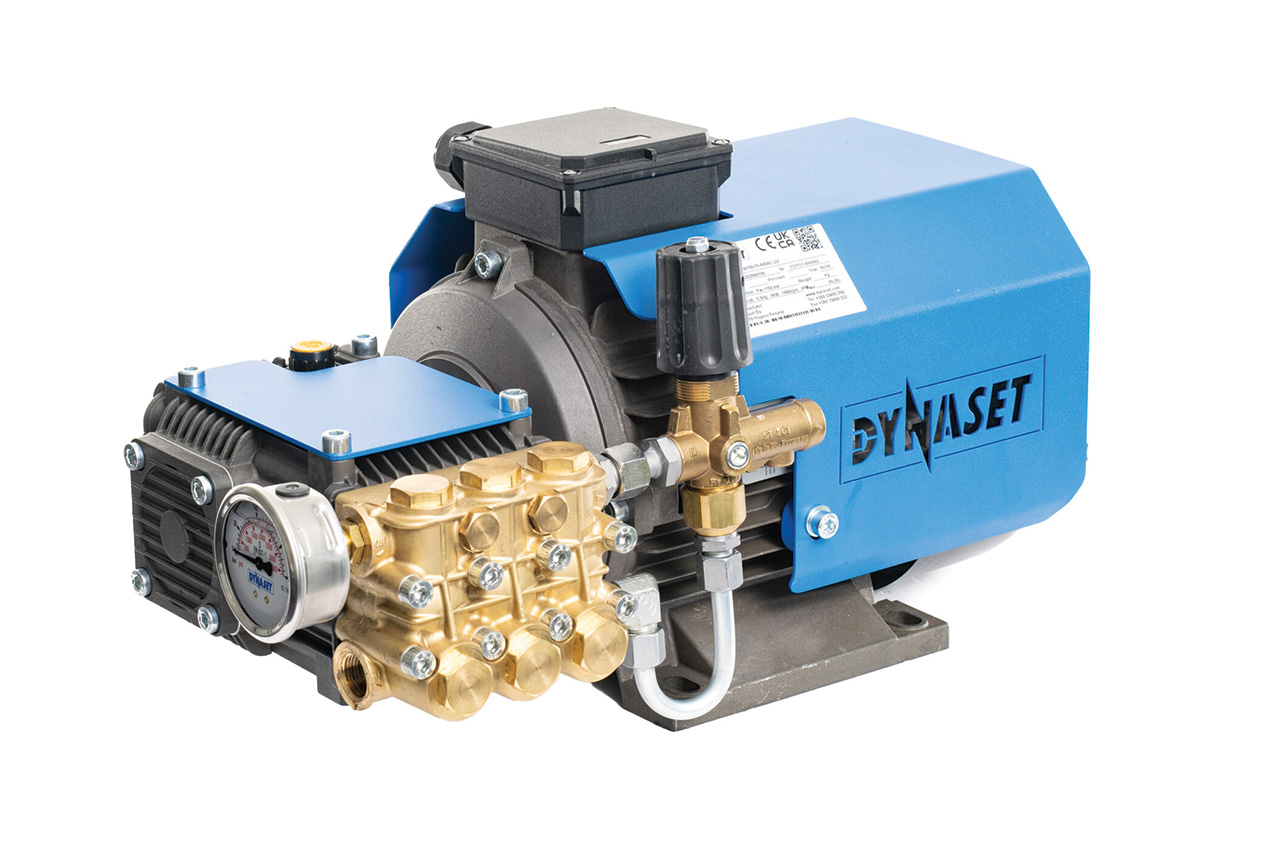

EPW 150 AC
DYNASET EPW Electric High Pressure Water Pump converts the electric power into high-pressure water. Line up consists both AC and DC-powered pumps.
The EPW Electric High Pressure Water Pump converts electric power into high-pressure water, providing a durable, high-quality solution for various applications. With a robust structure and options for both AC and DC-powered models, this pump is built to perform reliably even in challenging environments. Whether used in industrial, municipal, or commercial settings, the EPW pump delivers consistent high-pressure water output with low maintenance, making it an efficient and long-lasting choice for demanding tasks. Accessories for power washing and dust suppression available.
Applications
- High pressure / Power washing of machinery, public places, vehicles etc.
- Dust suppression and control in street cleaning, aggrecates, mining and demolition sites etc.
- Street Cleaning
- Hydro scaling in mining and tunnelling industry
- Graffiti removal
- Fire fighting with High-Pressure Water
- Sewer and pipe cleaning
- Mobile cleaning services
- Robot washers
- Pressure testing
- Bin cleaning
Key Benefits and Features of AC Pumps
- Produces high-pressure water suitable for both power washing and dust suppression
- Easy installation thanks to a compact and lightweight structure; utilizes the electrical grid with no need for a separate engine.
- 150 bar (2200 psi) max pressure with 15-liter (3.96 gal) flow ensuring the powerful performance.
- IP55 protected – Designed to resist dust ingress and withstand water jets from any direction, ensuring durability in challenging environments.
- 400-volt operation compatible with standard industrial power systems.
- Always ready for use with low water consumption and low maintenance needs.
- Max power output of 3.75 kW
- Models with automatic start-and-stop functionality available, offering enhanced convenience.
EPW AC
| UNITS | EPW-E150/15-400AC-UV | EPW-E150/15-400AC-UV-E | |
|---|---|---|---|
| DISCHARGE CHARACTERISTICS | |||
| Pumping fluid flow max. | l/min (gpm) | 15 (3.96) | 15 (3.96) |
| Pressure max. | bar (psi) | 150 (2'176) | 150 (2'176) |
| Power | kW | 3.75 | 3.75 |
| PUMPING FLUID REQUIREMENTS | |||
| Suction head max. | m (ft) | 0 | 0 |
| Feed pressure | bar (psi) | 1 (15) - 3 (44) | 1 (15) - 3 (44) |
| Water filter (filtered water / unfiltered water) | mesh | 80 | 80 |
| ELECTRIC REQUIREMENTS | |||
| Power max. | kW | 4 | 4 |
| Voltage | VAC | 400 | 400 |
| Current max. | A | 9.4 | 9.4 |
| Motor RPM | 1400 | 1400 | |
| IP | 55 | 55 | |
| MEASUREMENTS | |||
| Length | mm (in) | 510 (20.1) | 510 (20.1) |
| Width | mm (in) | 292 (11.5) | 292 (11.5) |
| Height | mm (in) | 265 (10.4) | 279 (11.0) |
| Weigth | kg (lbs) | 38 (84) | 40 (88) |
All rights to changes reserved.
