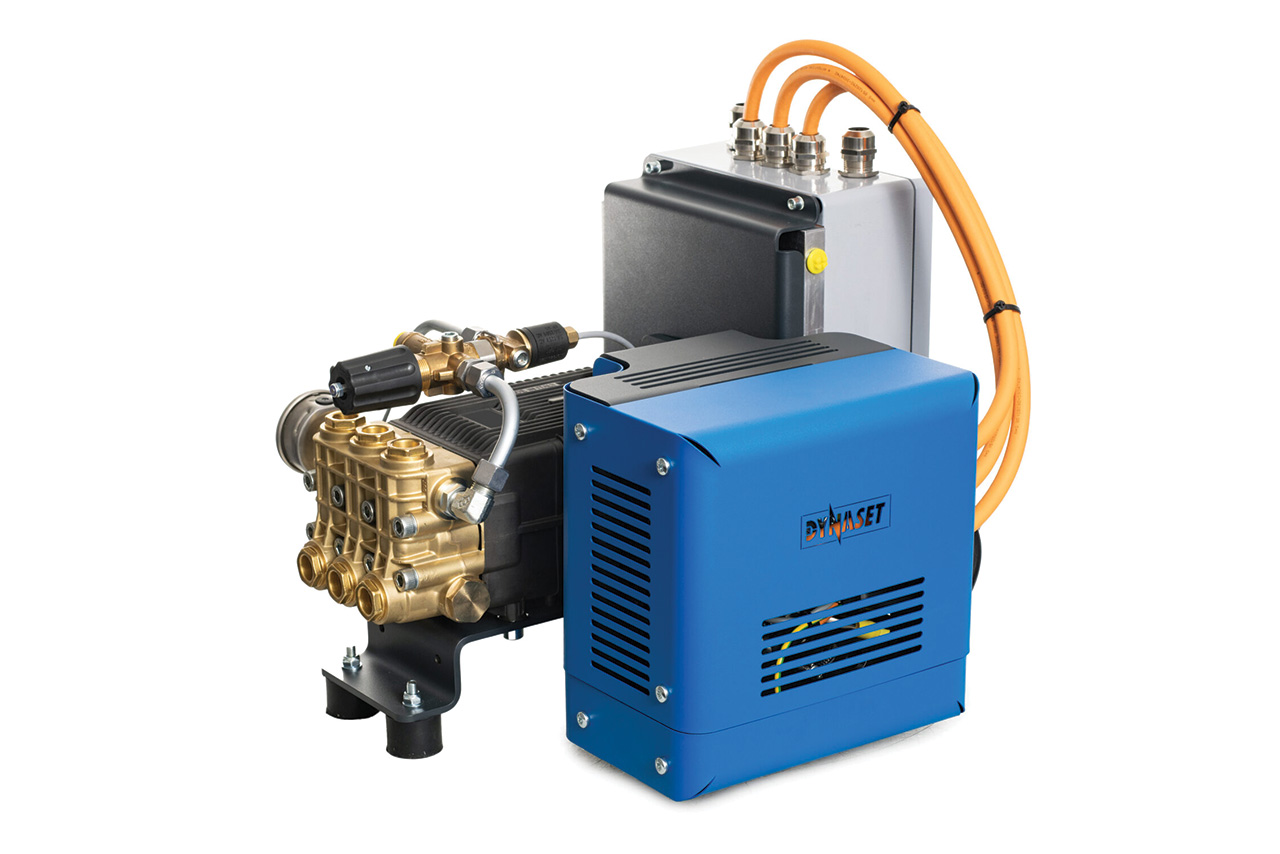

EPW 200 DC
DYNASET EPW Electric High Pressure Water Pump converts the electric power into high-pressure water. Line up consists both AC and DC-powered pumps.
The EPW Electric High Pressure Water Pump converts electric power into high-pressure water, providing a durable, high-quality solution for various applications. With a robust structure and options for both AC and DC-powered models, this pump is built to perform reliably even in challenging environments. Whether used in industrial, municipal, or commercial settings, the EPW pump delivers consistent high-pressure water output with low maintenance, making it an efficient and long-lasting choice for demanding tasks. Accessories for power washing and dust suppression available.
Applications
- High pressure / Power washing of machinery, public places, vehicles etc.
- Dust suppression and control in street cleaning, aggrecates, mining and demolition sites etc.
- Street Cleaning
- Hydro scaling in mining and tunnelling industry
- Graffiti removal
- Fire fighting with High-Pressure Water
- Sewer and pipe cleaning
- Mobile cleaning services
- Robot washers
- Pressure testing
- Bin cleaning
Key Benefits & Features of DC Pumps
- Produces high-pressure water suitable for mobile applications
- Easy installation and always ready to use, as DC pumps are powered by a machine’s or vehicle’s battery – no inverter needed
- Available in a range of power outputs from 9.8 kW to 16,7 kW
- IP65 – Dust-tight and protected against strong water spray from any direction, ensuring durability, reliability and safe usage
- High-pressure capabilities from 170 bar to 450 bar (2465 psi to 6527 psi), max flow rates up to 20–50 l/min (5.3–13.2 gal/min) depending on the model
- Always ready for use with low water consumption and low maintenance, saving time
- Saves space with a compact, lightweight design
EPW DC
| UNITS | EPW DC 200/30 | EPW DC 200/50 | EPW DC 450/20 | |
|---|---|---|---|---|
| DISCHARGE CHARACTERISTICS | ||||
| Pumping fluid flow max. | l/min (gpm) | 30 (7.93) | 50 (13.21) | 20 (5.28) |
| Pressure max. | bar (psi) | 200 (2'901) | 200 (2'901) | 450 (6'527) |
| PUMPING FLUID REQUIREMENTS | ||||
| Suction head max. | m (ft) | 0 | 0 | 0 |
| Feed pressure | bar (psi) | 2 (29) - 3 (44) | 2 (29) - 3 (44) | 2 (29) - 3 (44) |
| Water filter (filtered water / unfiltered water) | mesh | 80 | 80 | 80 |
| ELECTRIC REQUIREMENTS | ||||
| Voltage, nominal | VDC | 400 | 400 | 400 |
| Voltage range | VDC | 400-700 | 400-700 | 400-700 |
| Current, max. | A | 45 | 45 | 45 |
| Control voltage | VDC | 12 - 24 | 12 - 24 | 12 - 24 |
| Control current (inrush current) | A | 2 (4) | 2 (4) | 2 (4) |
| IP (Classification for electric components) | 65 | 65 | 65 | |
| COOLING REQUIREMENTS | ||||
| Coolant Fluid | water / glycol | 50%/50% | 50%/50% | 50%/50% |
| Coolant Flow, required | l/min (gpm) | 5 (1.32) | 5 (1.32) | 5 (1.32) |
| Coolant System Pressure, max. | bar (psi) | 2 (29) | 2 (29) | 2 (29) |
| Coolant Temperature, max. | °C (°F) | 50 (122) | 50 (122) | 50 (122) |
| Coolant Capacity Requirement* | kW | 2.8 | 4.3 | 3.8 |
| MEASUREMENTS | ||||
| Length | mm (in) | 492 (19.4) | 507 (20.0) | 492 (19.4) |
| Width | mm (in) | 442 (17.4) | 458 (18.0) | 442 (17.4) |
| Height | mm (in) | 373 (14.7) | 373 (14.7) | 373 (14.7) |
| Weigth | kg (lbs) | 57 (126) | 59 (130) | 58 (128) |
*NTP environment
All rights to changes reserved.
