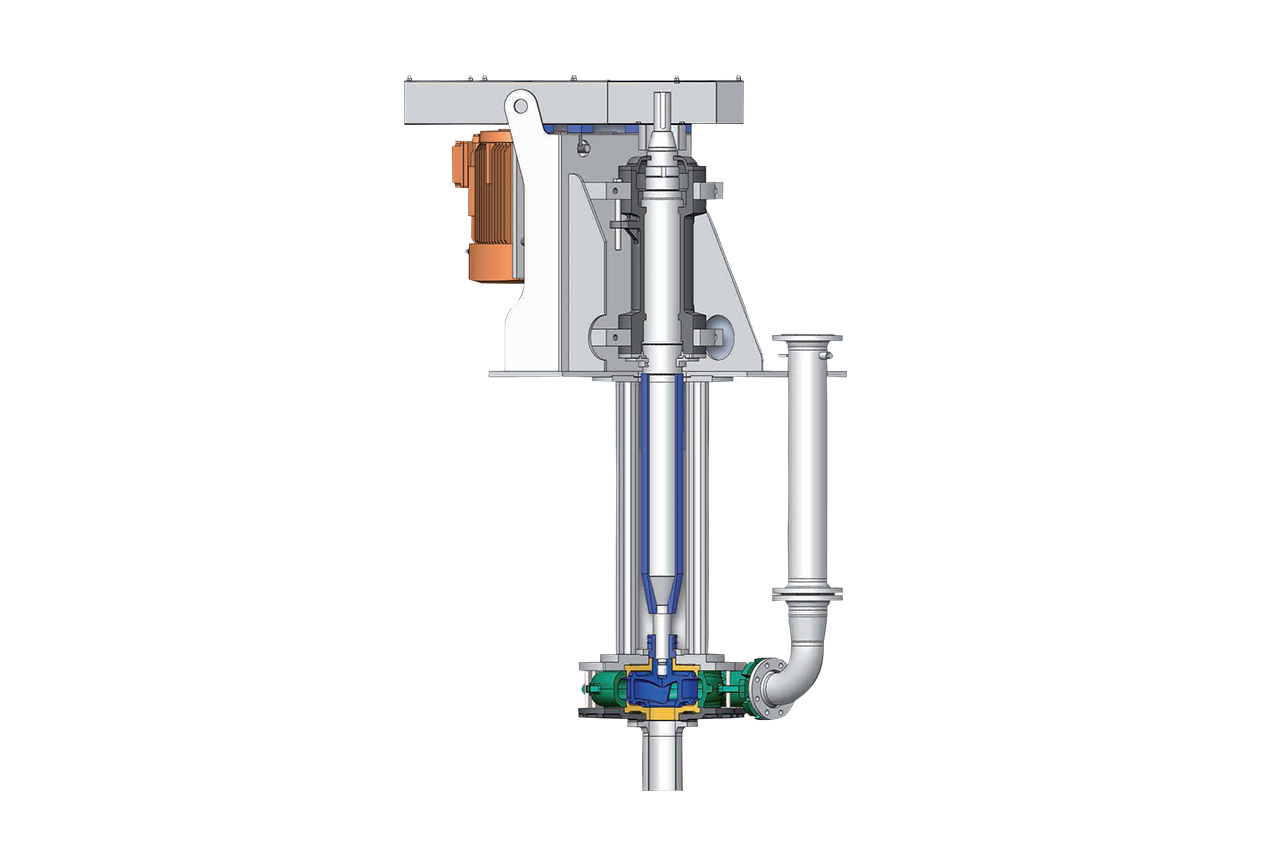

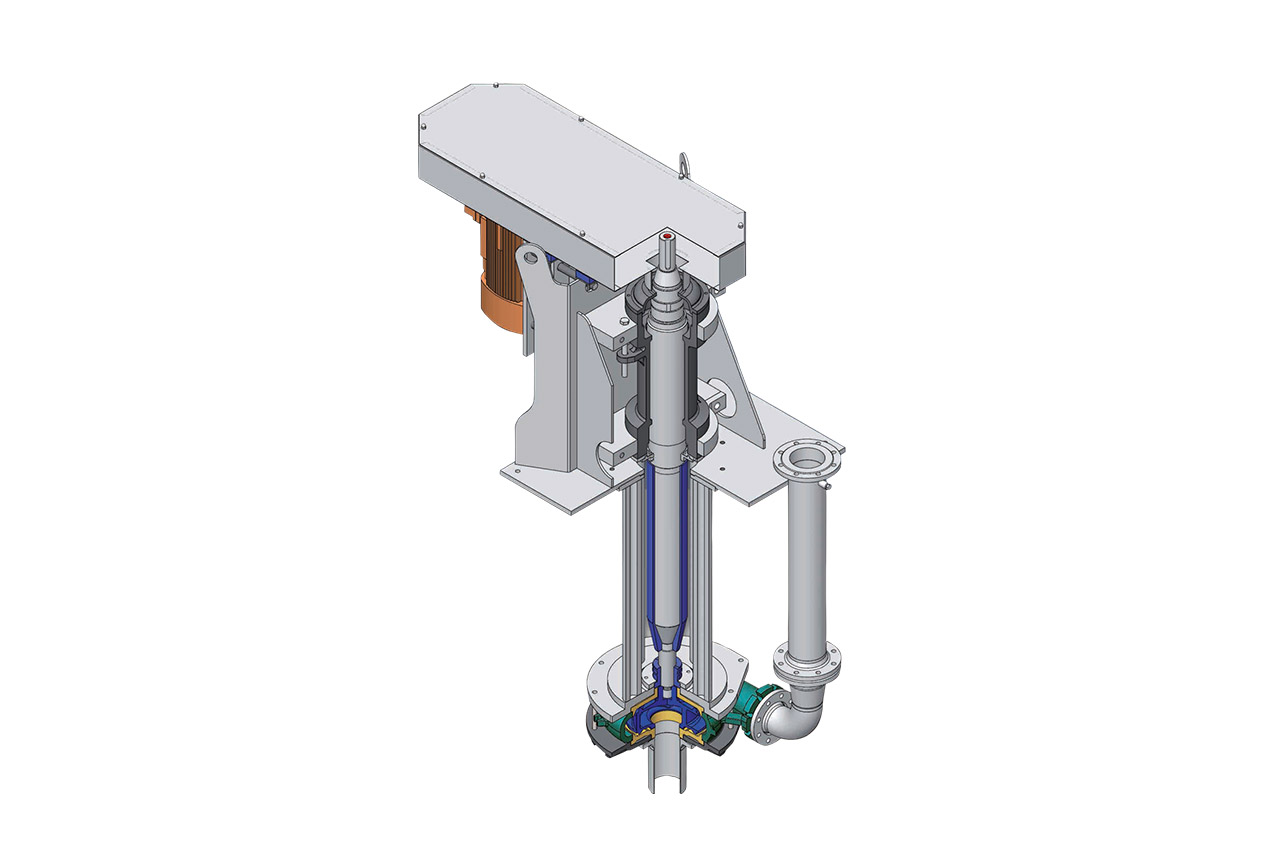

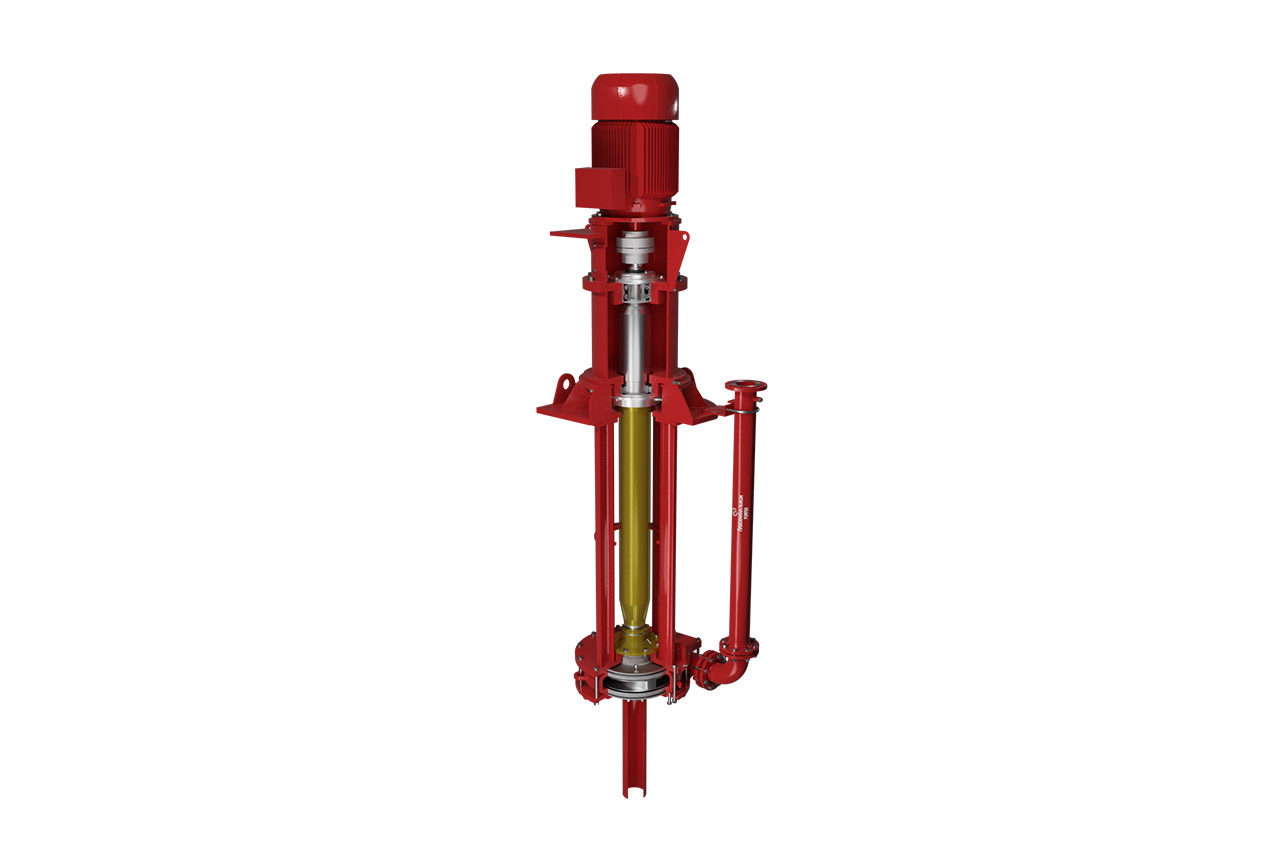

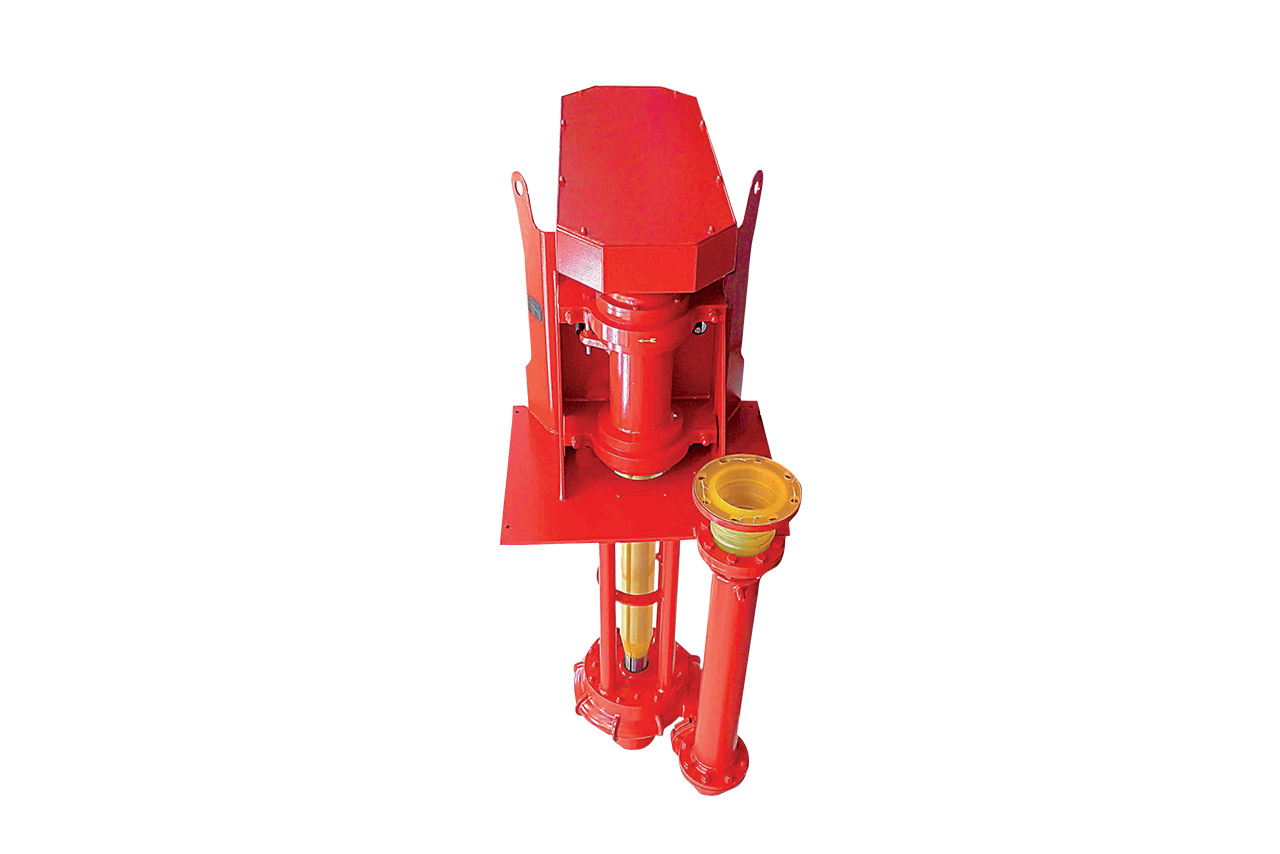

V300/V320/V340 Series Vertical Pumps

Vertical slurry pump for gas and foaming medium and discontinuous inlet. The models V320 and V340 are particularly suitable for gaseous or foaming medium and discontinuous inflow e.g. in digesting processes.

Characteristics

The V model series benefits from our modular structure. The hydraulic parts correspond to those of the HPK, NPK and NPW solids pump series. The pumps can be designed as metallic pumps, as well as with elastomer lining.

Main features:

  • Seal-less model, therefore no suspension dilution
  • Dry installation of the bearing and the motor
  • Suitable for high solids concentrations and aggressive media
  • Very high corrosion resistance (pH 0-14)
  • Shaft length up to 1.800 mm
  • The installation depth can be increased by extending the suction pipe (up to 2.500 mm)

Typical applications for the V320 and V340 model series:

  • Flotations
  • Digesting processes
  • Discontinuous inflows
  • Sand industry & mineral processing
  • Flue gas desulphurisation
  • Steel mills or hot-rolling mills

Areas of Application

Tunnel Construction and Civil Engineering

Aerated concrete, Bentonite, cement batching, Chalk slurries, Kaolin, clay, Micro-tunnel construction, Sand & gravel, Sand industry, Slate, marble, granite, Transport concrete, Vertical bores (land and sea)

Chemical Industry

Aggressive chemicals, Fertilisers, PO4, Foaming suspensions, Pigments, Sediments, soda, Separation, SO4, chloride, Waste recycling

Sugar Industry

Beet pulp, Organic slurries, Washing plants, Wastewater treatment plants

Steel Industry

Blast furnaces, Cooling water transport, Hot rolling mills, Sinter and scale deposits

Processing & Mining

Ceramic, glass cut-outs, Coal/ ore / phosphates / potash/ bauxite, Fe, Zn, Cu, Ti, Salt, Al, etc., Flotation and foam medium, Mining slurries, Ore slurries, Separation, Slurry and sump pumps, Waste recycling

Sand & Gravel

Extraction, Mineral processing, Water retention, Wet processing

Technical Specifications

  • FLOW RATEup to 600 m3 /h
  • DELIVERY HEAD, SINGLE-STAGEUP TO 52 M.FI.S
  • PUMP SPEEDUP TO 1,475 RPM
  • CONNECTION SIZESDN100 - DN250
  • STANDARD CABLE LENGTH8M
  • DIVING DEPTHUP TO 30 M BAR
  • OPTIONAL TEMPERATURE RANGE12°C - 40°C
