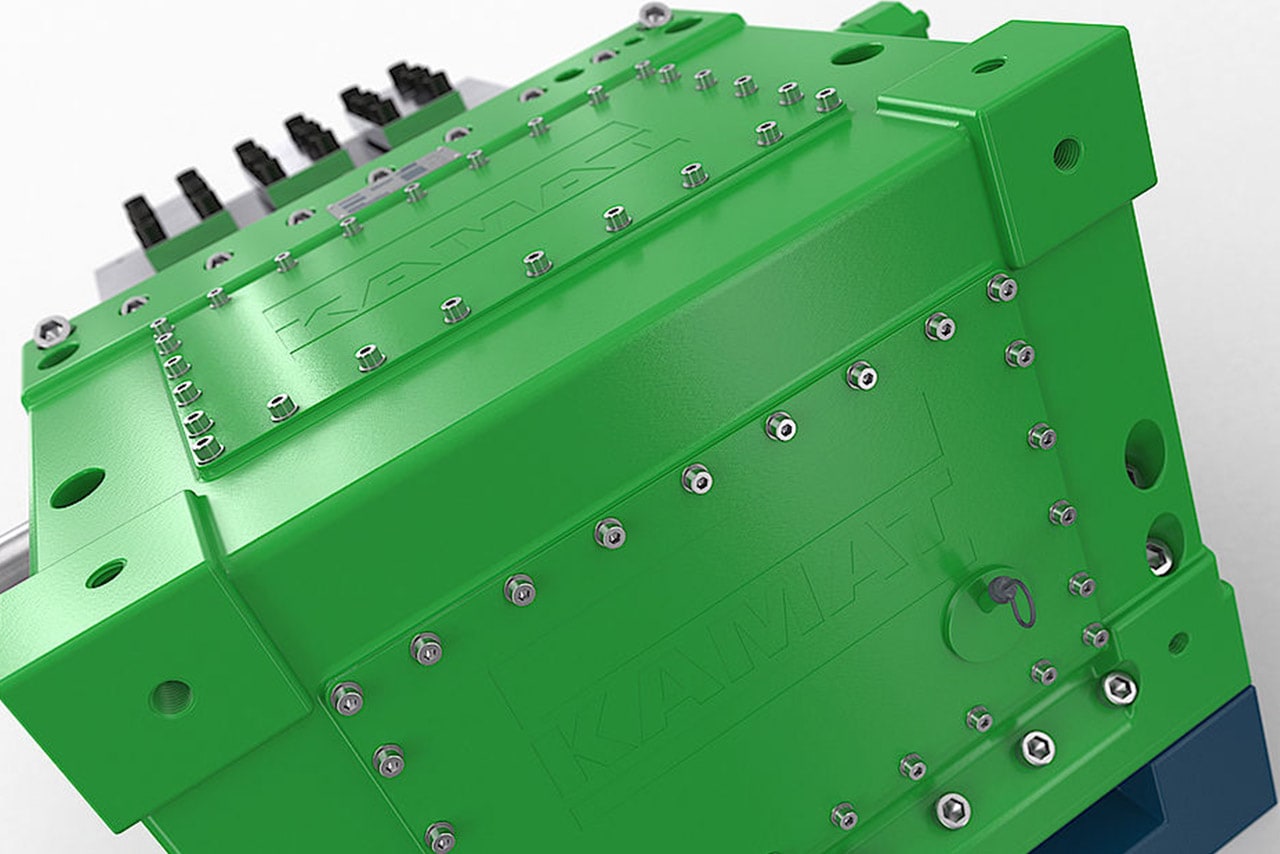

Triplex Plunger Pump K 35000-3G

With a driving power of 350 kW, the K 35000 high-pressure pump is very well suited for jetting and hydraulic applications. It is frequently used, for example, with large mobile jetting systems and has proved itself over many years with service providers in the chemical industry, as well as in mining for flow rates of between 400 and 600 l/min. In this case, the K 35000, with a forced-lubricated gear and with oil cooler, is suited to the demands of 24/7 operation. The K 35000 high-pressure pump is constructed in the classic KAMAT modular component system and as such offers a flexible adaptation to requirements such as operating pressure and medium. Therefore it is also frequently employed in the process-technology sector.

Characteristics:

  • Gear with forced lubrication
  • With oil cooler
  • Integrated gear reduction-ratio
  • Also available in accordance with API 674 and/or ATEX
  • Special media, such as sea water, glycol, methanol, oils etc., on request
  • Filtration up to 350 µm

Technical Specification

  • Flow47 - 1310 l/min
  • Pressure110 - 3500 bar
  • Power Input280 - 350 kw
  • Weight1360 kg
