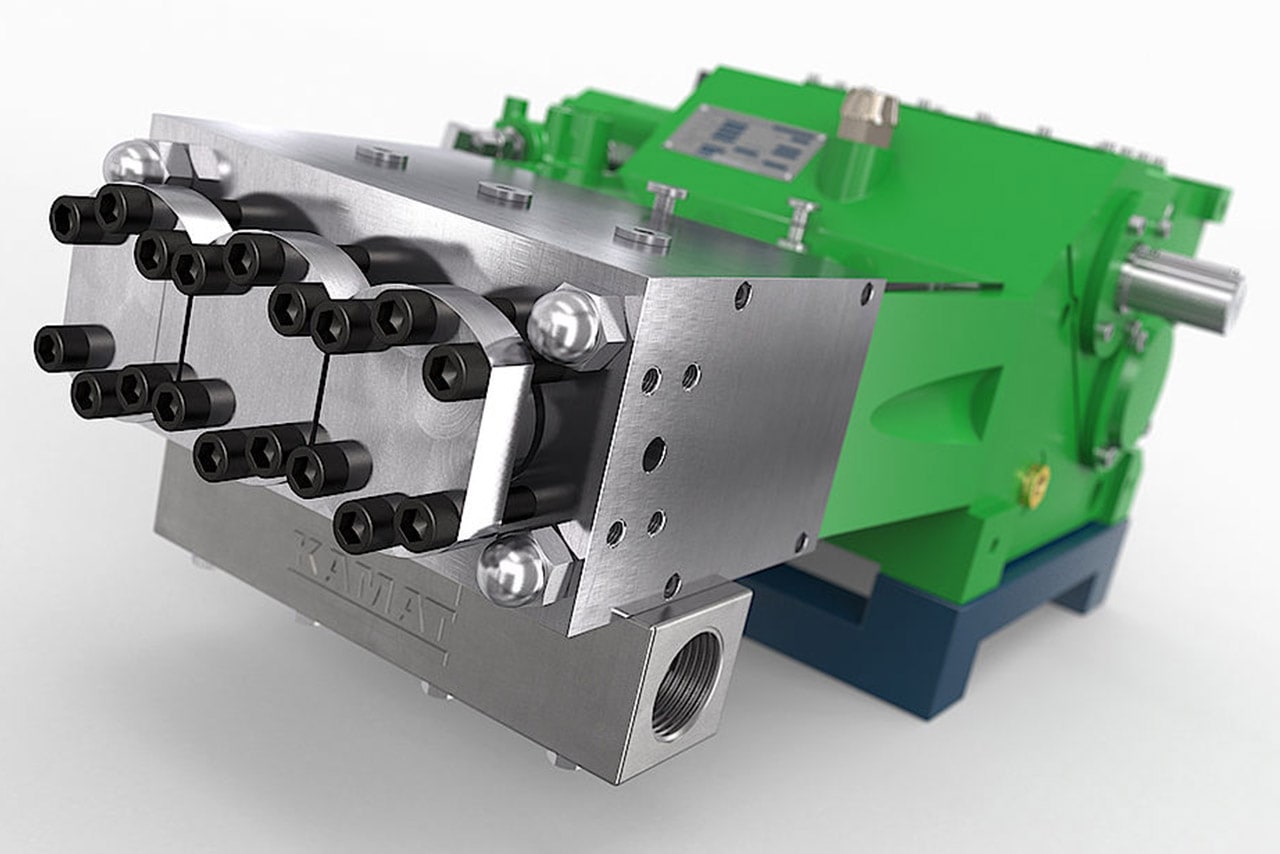

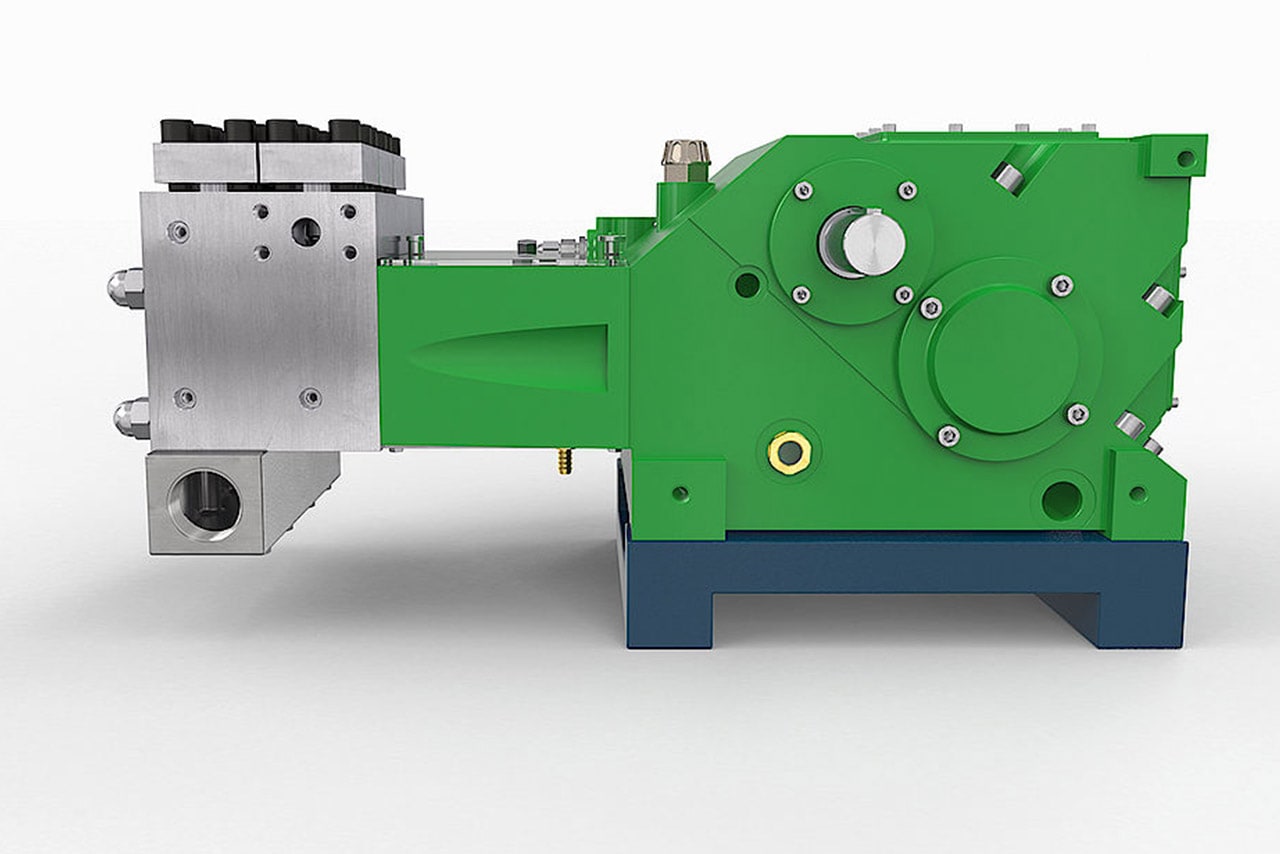

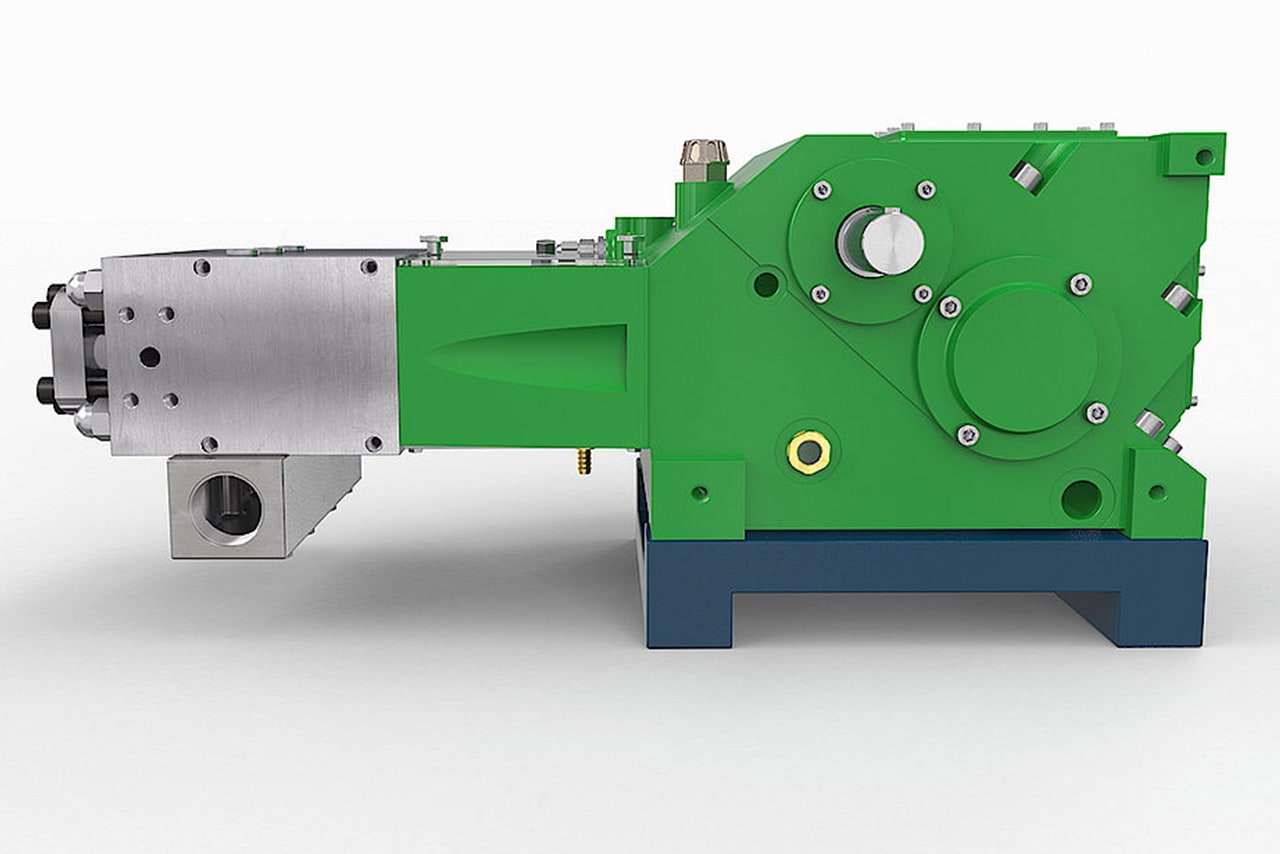

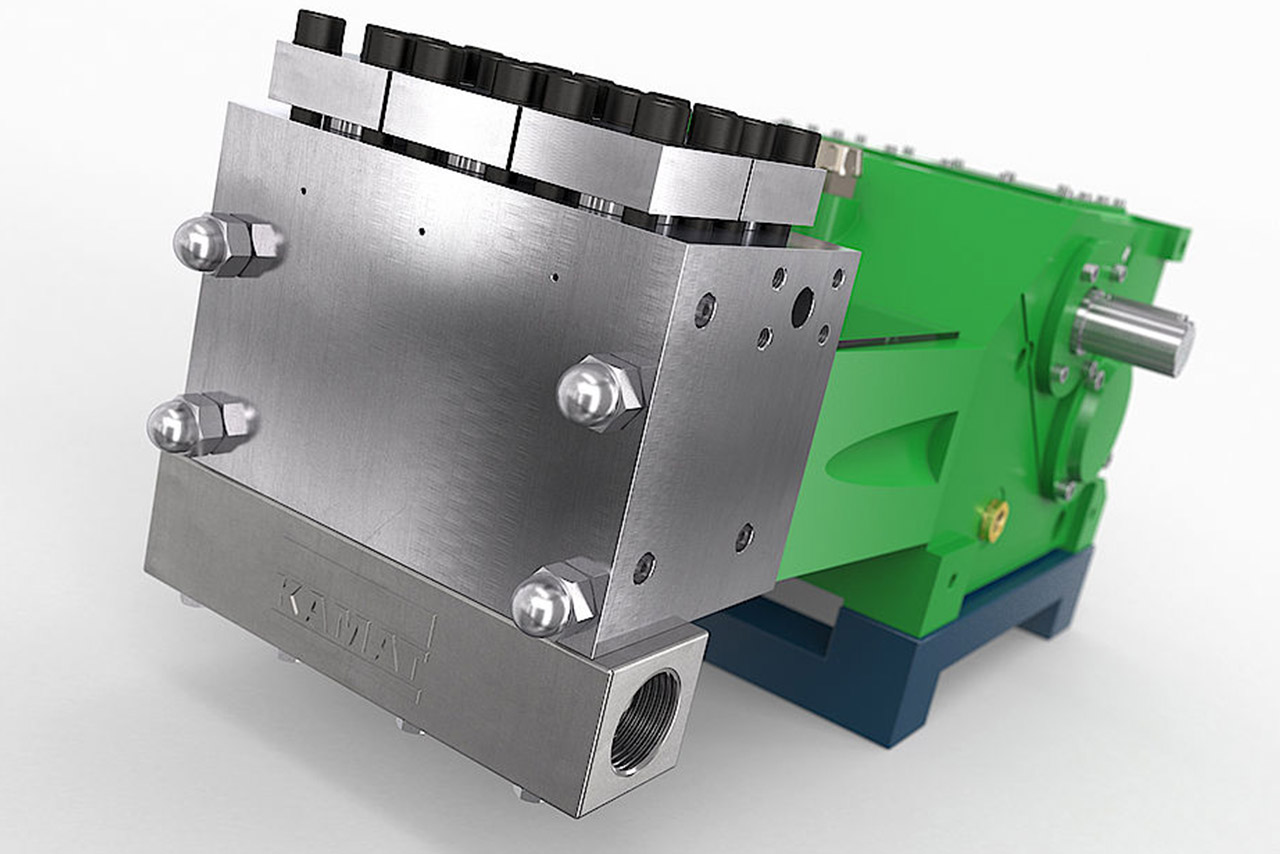

Triplex Plunger Pump K 8000-3G

The K 8000 is extremely useful for many purposes: From small-scale applications in industry, such as industrial cleaning and jetting, through to the pumping of special media such as sea water, glycol, methanol or oils. With 80 kW it is associated with the more compact KAMAT high-pressure pumps. The classic KAMAT modular component system enables the pump to be simply designed for different requirements. Nevertheless, the pump consists of relatively few parts, whereby maintenance is simplified and its reliability is increased. From this pump size, the KAMAT high-pressure pumps are provided with an integrated gear reduction-ratio.

Characteristics:

  • Gear with oil-bath lubrication
  • Integrated gear reduction-ratio
  • Also available in accordance with API 674 and/or ATEX
  • Special media, such as sea water, glycol, methanol, oils etc., on request
  • Filtration up to 350 µm

Technical Specification

  • Flow13 - 283 l/min
  • Pressure135 - 2950 bar
  • Power Input37 - 75 kw
  • Weight250 kg

Product Downloads

Click the links below to download product information

Make and Enquiry

For more information on this product please call us on NSW (02) 4271 2999 or QLD (07) 4952 3612 or fill out the form below and we will get back to you.
